Drum heaters

The ideal solution for heating of liquids in steel and plastic containers, such as soap, grease, paint and chemicals. The various versions that we have been supplying for years have amply proven their quality. These are frequently used in the pharmaceutical, chemical, cosmetic and food industries.

Drum heaters ensure that the viscosity of the liquid is significantly reduced. Due to the special construction and correct clamping, it ensures correct operation with optimal heat transfer. The desired working temperature can be controlled by means of an adjustable thermostat up to 120°C or up to 90°C for plastic drums.

Version suitable for steel drums, thermostat and silicone cable 2 meters:

Art.nr

Volt.

Watt.

Height

Length

Capacity

Temp

90152

230V

300W

125 mm

800 mm

25 liter

0-120°C

90147

230V

500W

125 mm

940 mm

50 liter

0-120°C

90127

230V

800W

125 mm

1300 mm

105 liter

0-120°C

90044

230V

1000W

125 mm

1665 mm

200 liter

0-120°C

90119

230V

1000W

180 mm

1665 mm

200 liter

0-120°C

90145

230V

1500W

180 mm

1665 mm

200 liter

0-120°C

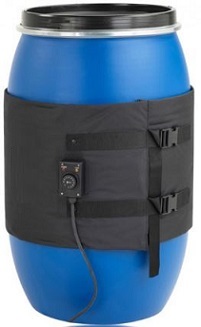

Version suitable for plastic barrels with thermostat, tension straps and silicone cable 4 meters:
Material: Teflon / Polyester

Art.nr

Volt.

Watt.

Height

Length

Capacity

Temp

90157

230V

200W

400 mm

1250 mm

25 liter

0-90°C

90158

230V

250W

460 mm

1250 mm

50 liter

0-90°C

90159

230V

400W

370 mm

1650 mm

105 liter

0-90°C

90155

230V

450W

450 mm

1950 mm

200 liter

0-90°C

90156

230V

1200W

800 mm

1950 mm

200 liter

0-90°C



Assembly instructions BEFORE use:

  • Check the correct clamping, flat and completely around the vessel.
  • Check if the closing cap has been removed, which prevents overpressure due to expansion.
  • Check if the connection voltage corresponds to the stated voltage.
  • Check if the drum heater is mounted below the liquid level.
  • Check the set temperature of the control thermostat.

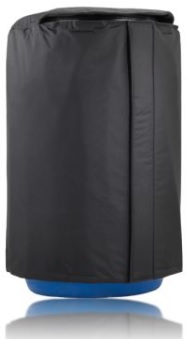

Option:

Insulation jacket for steel/plastic drum
Material: Teflon / Polyester

Article nr.

Capacity

Note

200 Liter

Water-repellent / velcro



The special bottom version suitable for steel drums/gep.cable 2000 mm
Material: Steel, painted.

Article nr.

Volt.

Watt.

Dia

Length

Capacity

Temp

230V

900W

550 / 600

105 mm

200 Ltr.

0-150°C

Caution!

  • Do not thermally insulate the drum heater.
  • Do not touch the drum heater when it is operating.
  • Never move the drum while the drum heater is operating.
  • Do not leave the drum heater unattended when it is in operation.
  • After use, allow the drum heater to cool down, after which careful disassembly is permitted.
