Nozzle heaters

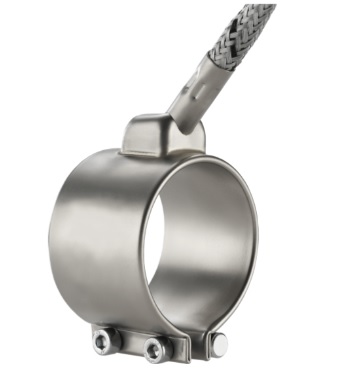

Nozzle heaters are mainly used if there is limited space and if there is a chance that plastic will get into the element. These nozzle elements are hermetically sealed, so that problems due to leakage of the product cannot cause an immediate malfunction. To meet the demand of the growing market, we have added a special version. The standard version is in brass. However, for higher temperatures we have a stainless steel version (see specification below).

During the production of these nozzleelements, regular checks are carried out to guarantee the high quality. To guarantee the best thermal heat transfer, it is important that the bending shape and clamping of these nozzle elements are extremely accurate. The connection between the nozzle element and the cable is made with a special tube piece, made from a seamless brass tube with a thickness of 1 mm. This ensures high mechanical resistance in the most aggressive environments. The final test ensures that the ohmic resistance, insulation resistance, diameter, width and design of the cable have been checked for accuracy. This ensures the guarantee of a good and high-quality product.





Specifications

Technical information (brass) Technical information (stainless steel)
– surface loading rate up to 6,0 W/cm² – surface loading rate up to 8,0 W/cm²
– working temperature up to 300/320° Celsius – working temperature up to 380/400° Celsius
– equipped with thermocouple (optional) – equipped with thermocouple (optional)
– Max diameter 110 mm / width 60 mm – Max diameter 110 mm / width 60 mm
– standard connection cable 1000 mm – standard connection cable 1000 mm
– standard cable version axial 45° – standard cable version axial 45°
– other cable version on request – other cable version on request
– connection voltage 230 Volt standard – connection voltage 230 Volt standard
– other voltage on request – other voltage on request
Material: Material:

– brass jacket

– stainless steel jacket
– internal resistance wire Ni 80/20 – internal resistance wire Ni 80/20
– fiber spun connecting wires in metal sleeving – fiber spun connecting wires in metal sleeving



Short delivery times

The production in our own factory is still the right choice, making us a fast solution with our short delivery times

Guaranteed quality

We can guarantee the required quality by making annual investments in new machinery and the right knowledge.

Custom made elements

Your desired type of element is not mentioned on our website? No problem! We can design this for you or offer a suitable alternative.
